Create a Data Stream

Reference:

Field	Mandatory	Description
Name	Yes	Unique name identifier. It must contain only lowercase alphanumeric characters. The characters ., _ and - are allowed to separate words instead of a space BUT can not be at the beginning or end of the name.
Title	Yes	The display name to show on the Kelvin UI. It can contain any characters, including spaces.
Description	No	Optional description for the data stream, up to 200 characters.
Type	Yes	Determines the type of data, see overview explanations for more details. Allowed values for SDK/API: measurement, computed, data_quality, set_point.
Semantic Type	No	Provides context or deeper meaning behind the data, beyond just its format or structure. Check Kelvin API for the full list of available semantic types.
Data Type	Yes	Specifies the kind of data in the stream. Allowed values for SDK/API: boolean, number, object, string.
Unit	No	Defines the measurement unit for data. Check Kelvin API for the full list of available units.

Note

You can see a full list of the default Sematic Type and Units available here.

See your Platform Administrator for any custom Semantic Types and Units created for your Kelvin Platform.

Create Data Stream

In this example we will create a Data Stream with the Semantic Type Pressure and with the name tubing_pressure.

Kelvin UIKelvin APIKelvin API Client (Python)

You can watch this short demo video or read the full step-by step written tutorial below.

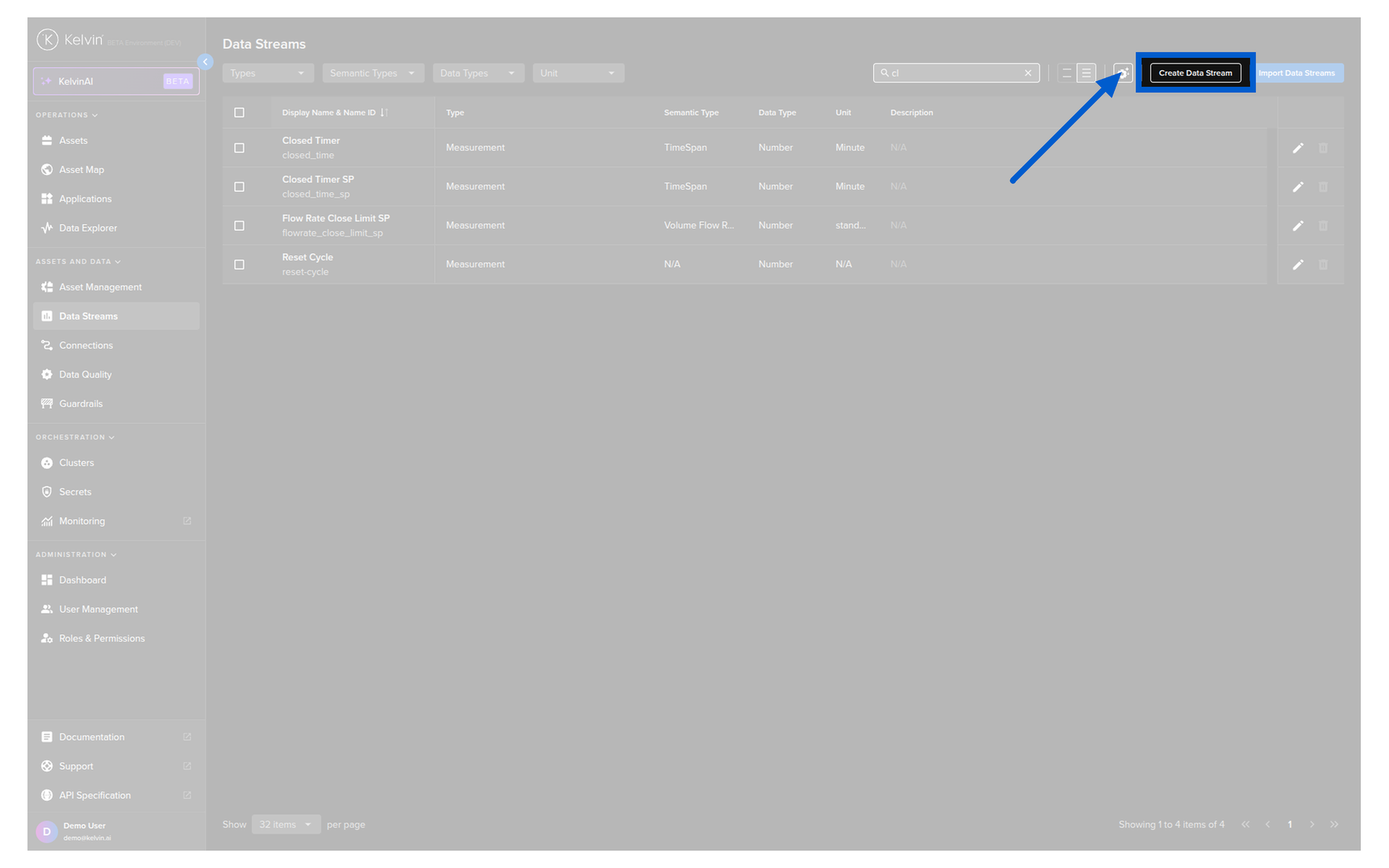

Go to the Data Streams page and click on the Create Data Stream button.

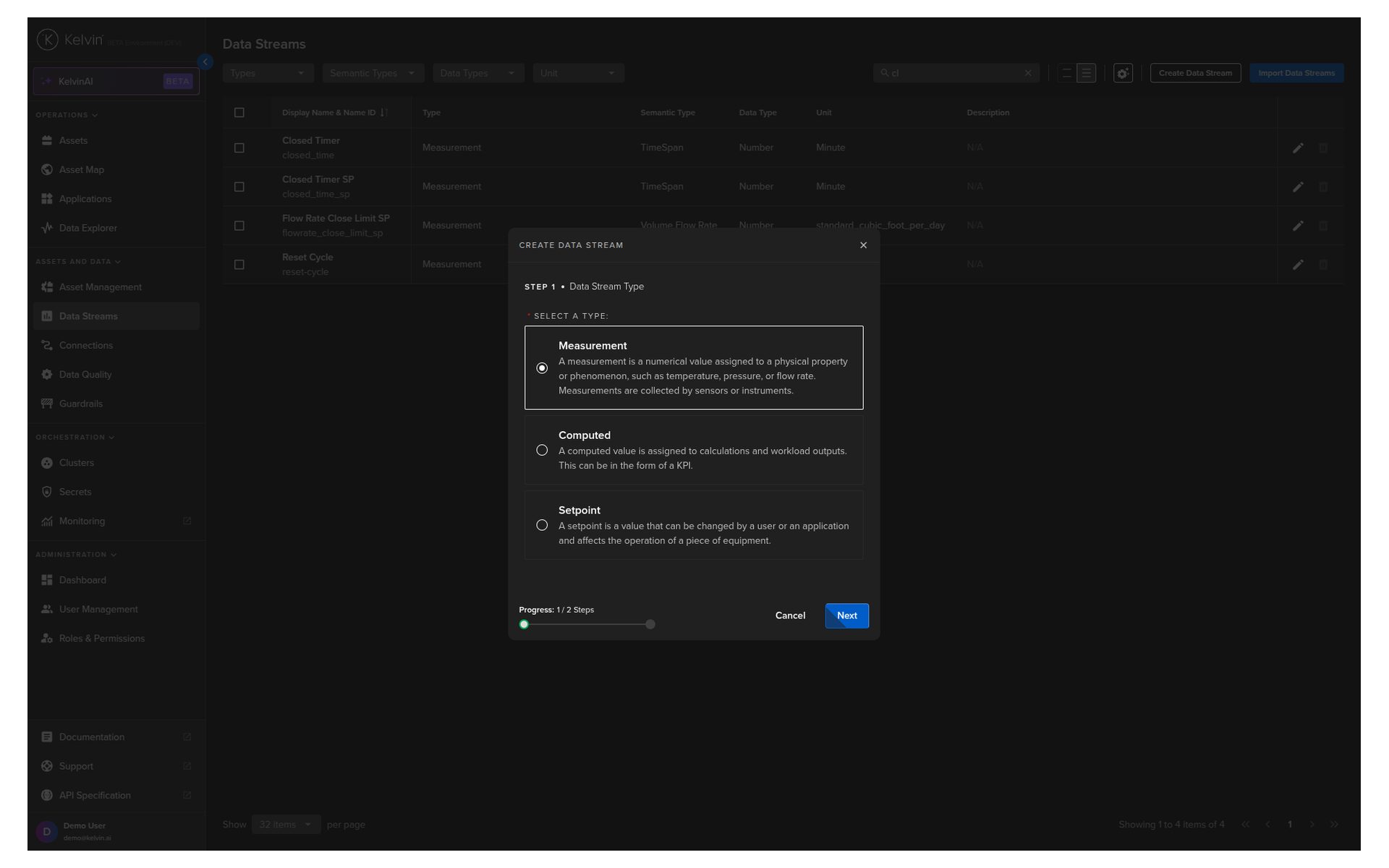

You then have four choices. Select Measurement, Computed, Setpoint or Data Quality and click next.

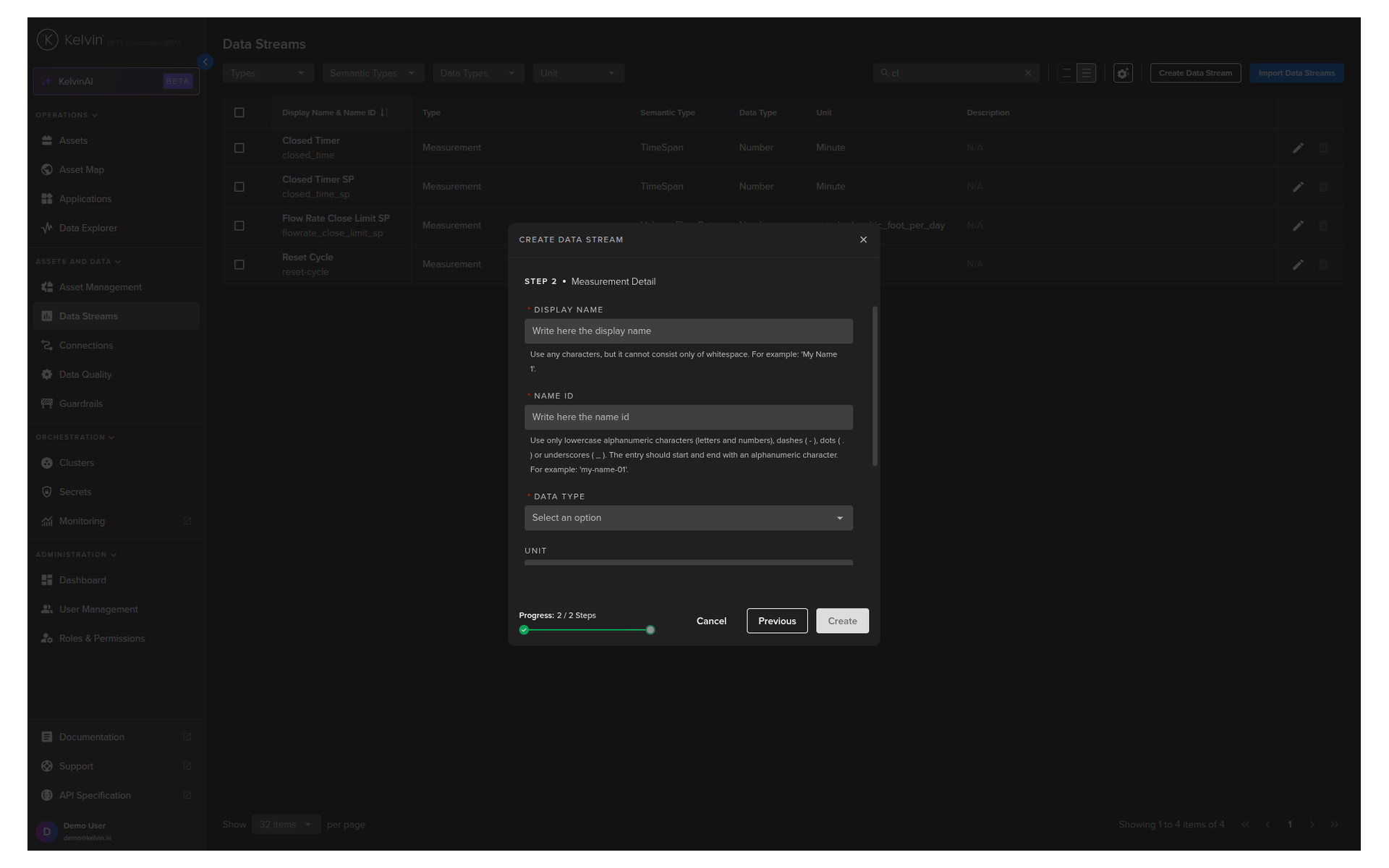

Mandatory field are the Display Name and Data Type. After filling this information you can click Create.

The Name ID is automatically created when you type in your Display Name.

Optionally you can also fill in a Unit and Semantic Type.

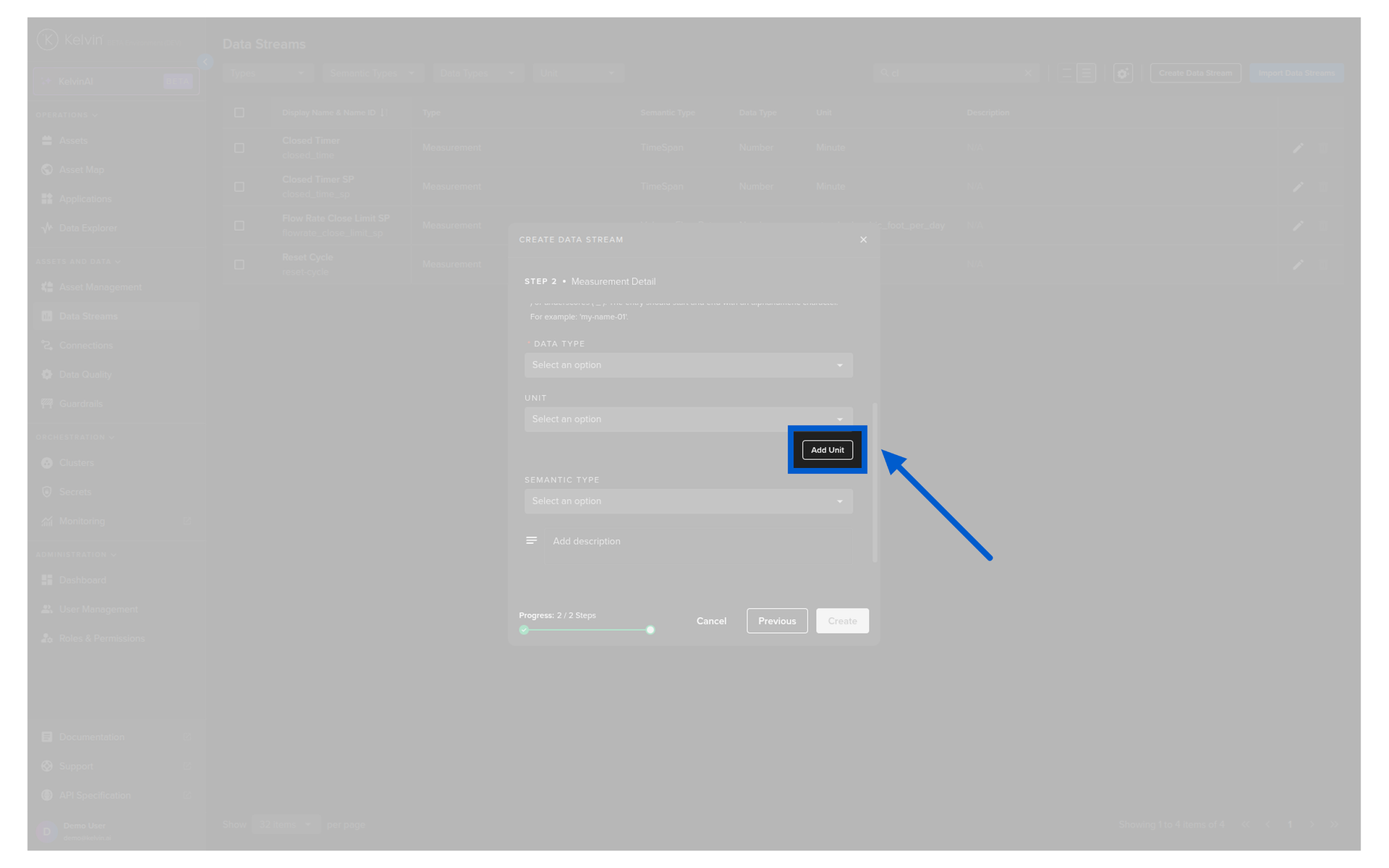

For the Unit, you can also create new Units on-the-fly by clicking on the Add Unit button.

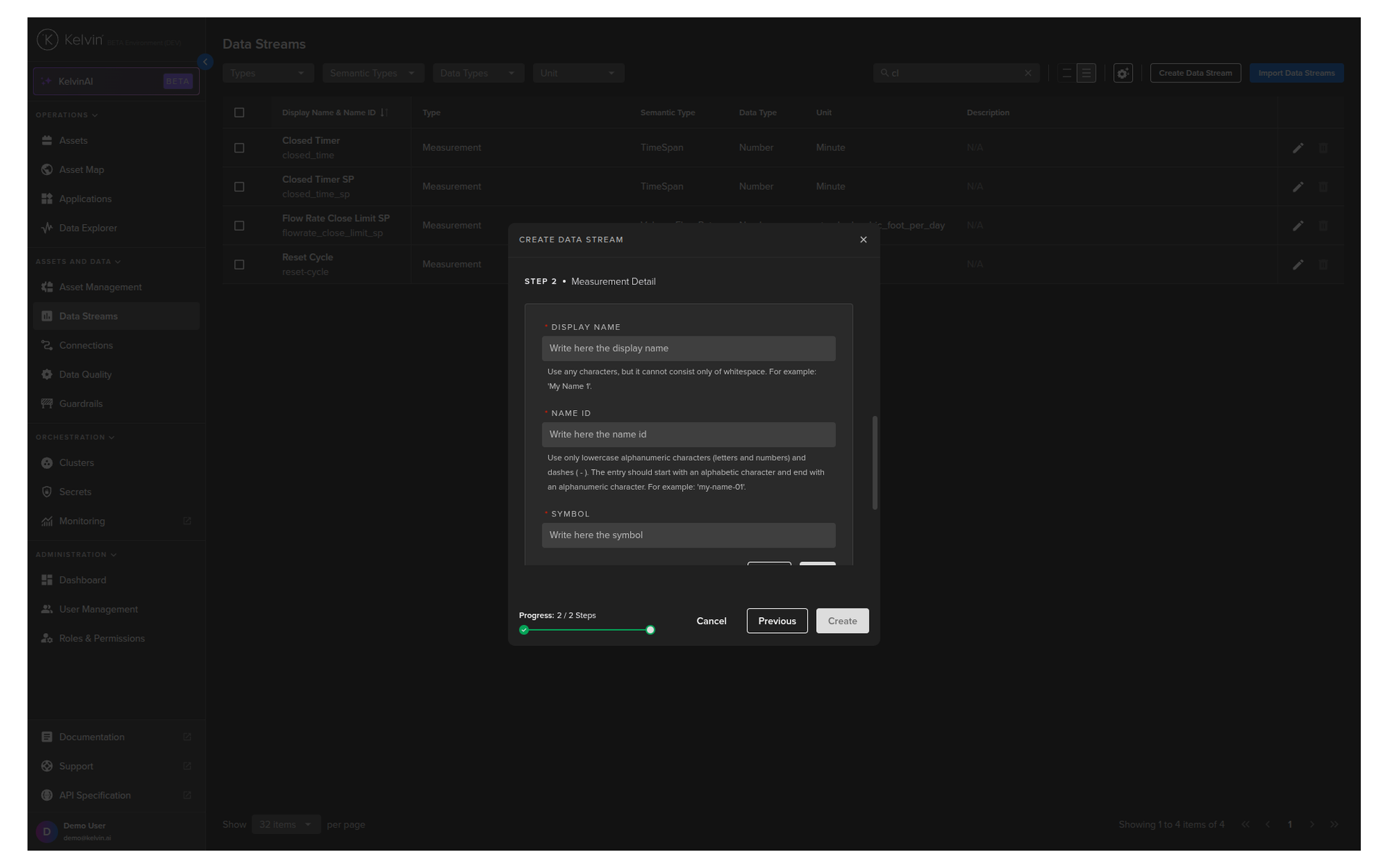

A popup will appear where you can create the new unit. Once created, you can then select it and click Create to create the new Data Stream.

curl -X "POST" \
"https://<url.kelvin.ai>/api/v4/datastreams/create" \
-H "Authorization: Bearer <Your Current Token>" \
-H "Accept: application/json" \
-H "Content-Type: application/json" \
-d '{
        "name": "doc_demo_data_stream",
        "title": "Docs Demo Data Stream",
        "description": "Demo for Documentation",
        "type": "measurement",
        "semantic_type_name": "pressure",
        "data_type_name": "number",
        "unit_name": "pound_per_square_inch"
    }'

from kelvin.api.client import Client

# Login
client = Client(url="https://<url.kelvin.ai>", username="<your_username>")
client.login(password="<your_password>")

# Create Data Stream
response = client.datastreams.create_data_stream(
    data={
        "name": "doc_demo_data_stream",
        "title": "Docs Demo Data Stream",
        "description": "Demo for Documentation",
        "type": "measurement",
        "semantic_type_name": "pressure",
        "data_type_name": "number",
        "unit_name": "pound_per_square_inch",
    }
)

print(response)
