App Parameters

Overview

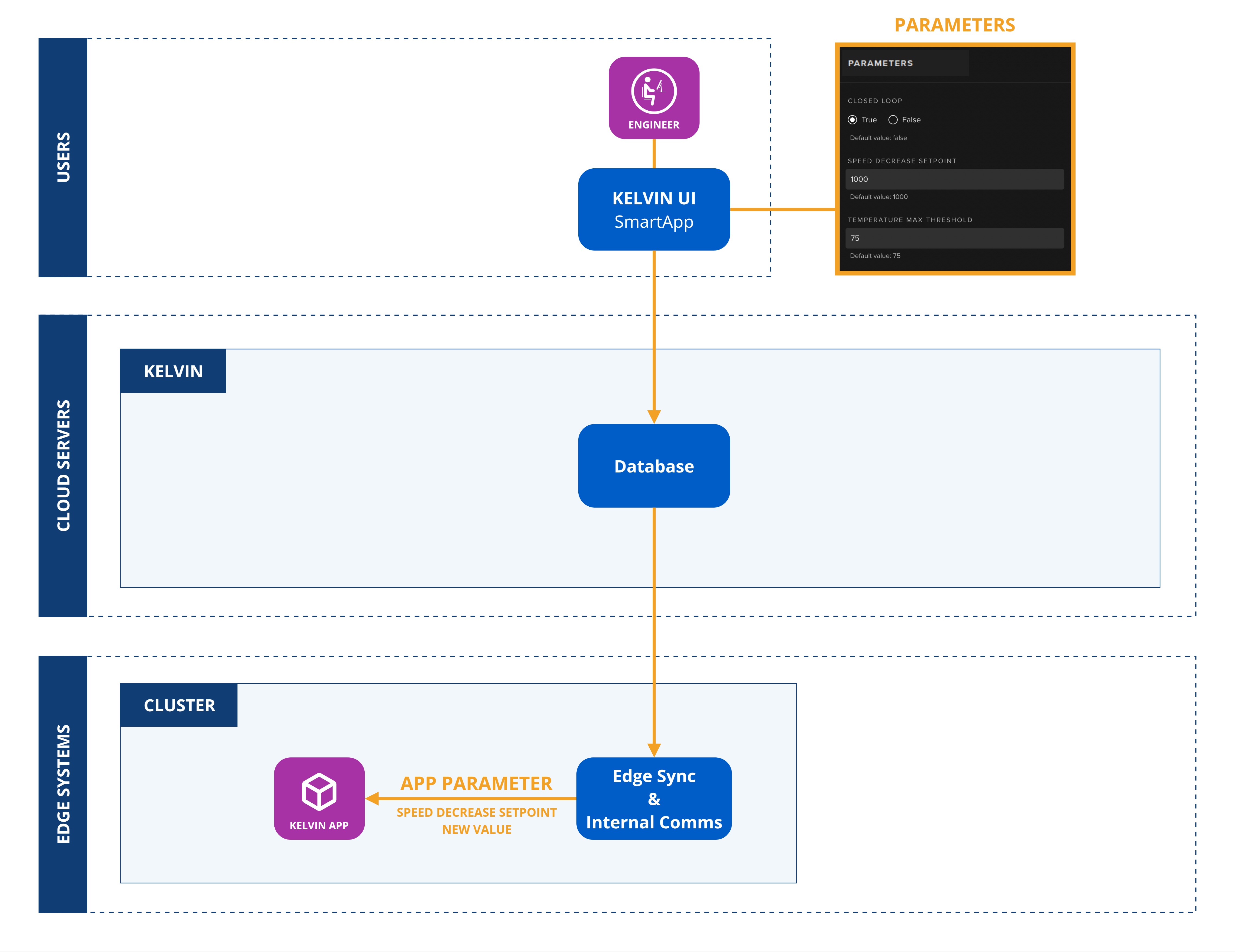

App Parameters are variables are a method to expose Kelvin SmartApp™ variables to Operations through the Kelvin UI. Their values are dynamic and can be modified at runtime by Operations.

These are usually the settings required by the Kelvin SmartApp™ to be able to customize its calculations for each Asset.

Each App Parameter value is related to and unique to a specific Asset within a Kelvin SmartApp™.

Note

Default values can be defined when the Assets are intially added to a Kelvin SmartApp™.

Data Type

It's essential to choose the appropriate Data Type that matches the kind of data you expect to use.

Some Semantic Types are predefined and will automatically determine the Data Type for you. For instance, if you choose "Pressure" as the semantic type, the system will automatically set the data type to Number. In contrast, the "State" semantic type offers more flexibility and can be a Boolean, Number, or String. In such cases, you'll need to manually select the correct Data Type.

Below are the available primitive data types with brief descriptions and their respective ranges:

Option	Declaration Name	Description
Boolean	boolean	Represents a binary state, either True or False
Number	number	Uses a double precision floating point format.
String	string	Variable-length text.
Object	Any word	This is unique because the word object is not explicitly used. Instead, an object is first defined in ui_schemas, and its filename serves as its identifier. For example, you can use the word dynacard which you can define in ui_schemas/io_configuration/, corresponding to the file schemas/io_configuration/dynacard.json.

Ensure that you pick the type that best aligns with the data you anticipate receiving to maintain data integrity and optimize processing.
