Kelvin Edge Services

When you install a Docker Cluster, you have the option to select what Kelvin Edge Services you require at the edge.

Note

This is designed to minimize resource usage to the bare minimum required.

Very useful when using low powered edge servers, like arm devices.

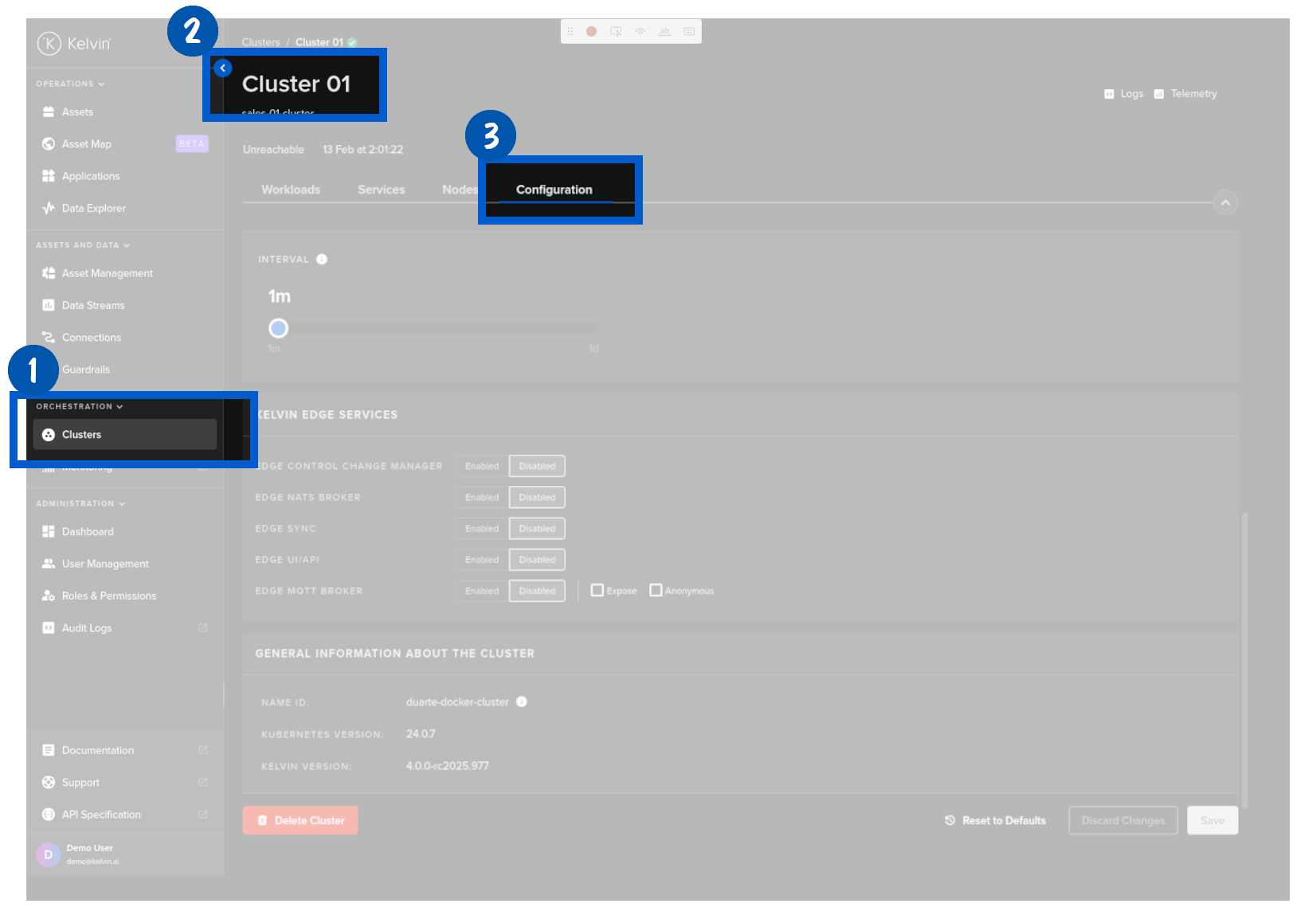

To see what services are available and choose what to enable, click on the Clusters menu on the left sidebar and select the Docker Cluster.

Note

This feature is only available for Docker Clusters.

Click on the Configuration tab and scroll down to Kelvin Edge Services.

Here you can see all the options available;

Edge Service	Description
Edge Control Manager	Looks after Control Change Objects, ensuring their delivery to the assets and the validation of the write attempt
Edge Nats Broker	Responsible for handling lightweight, high-performance messaging between edge devices and centralized systems. It acts as a message relay, ensuring efficient communication between Edge Connectors, the Kelvin Platform, and other services.
Edge Sync	Responsible for synchronizing Asset / Data Stream values between the assets and the Kelvin Platform. Handle connection interruptions without data loss.
Edge UI/API	Delivers a local edge server experience for local edge management services
Edge MQTT Broker	Handles all the communications between services. This has options to expose this service to the LAN and allow anonymous connections
