Timeseries Data Messages¶

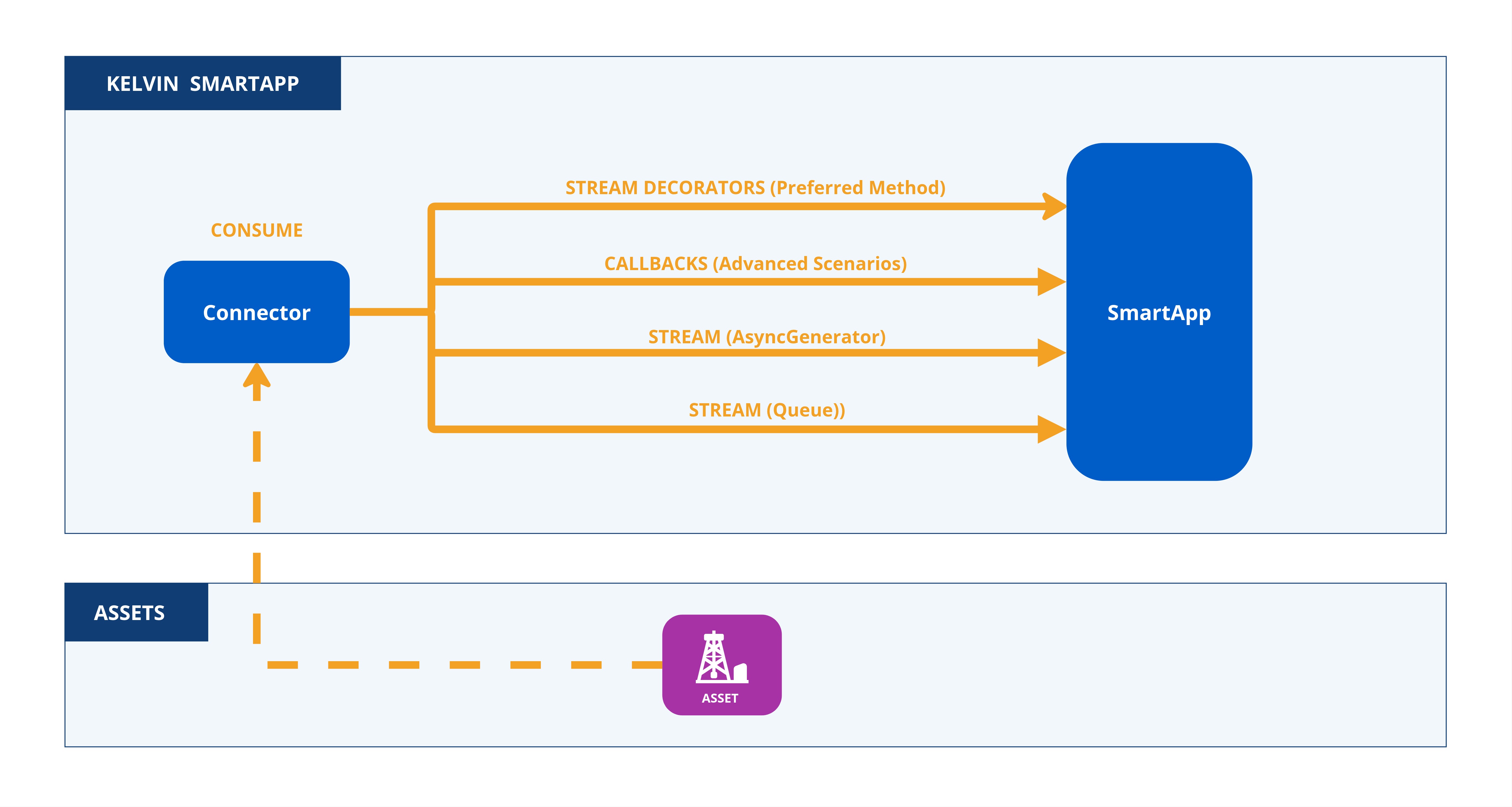

Timeseries data from Assets can be served to the Kelvin SmartApp™ in multiple ways, depending on the preferred data consumption method.

app.yaml setup¶

To consume streaming data, you must define the inputs section in the app.yaml file.

1
2
3
4
5
6

data_streams:
  inputs:
    - name: motor_temperature
      data_type: number
    - name: motor_state
      data_type: string

inputs is an array (list) composed by two fields:

• A unique name to identify the input. This will be used in the Python code to reference the input. It must contain only lowercase alphanumeric characters. The characters ., _ and - are allowed to separate words instead of a space BUT can not be at the beginning or end of the name.
• An expected data type, which can be: number, boolean or string.

Now that the Kelvin SmartApps™ inputs are defined, use one of the following methods to monitor and react to new incoming messages.

Stream Decorators (Preferred)¶

The preferred and simplest method for consuming incoming timeseries data is to create a Stream Decorator function.

You use the Data Stream filter to process only the relevant data.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

from kelvin.application import KelvinApp
from kelvin.message.typing import AssetDataMessage

app = KelvinApp()

# Filter by input data stream example 1
@app.stream(inputs=["motor_temperature", "motor_state"])
async def handle_specific_inputs(msg: AssetDataMessage) -> None:
    print(f"From specific inputs: {msg.payload}")

# Filter by input data stream example 2
async def handle_inputs(msg: AssetDataMessage) -> None:
    print(f"From specific inputs: {msg.payload}")

app.stream(handle_inputs, inputs=["motor_temperature"])

app.run()

Callbacks (Advanced)¶

For advanced scenarios, you can define callbacks for specific lifecycle events.

Callbacks work on a "per asset" message, so you will need to manually program filters for individual data stream processing.

The callback on_asset_input can be used to read every input flowing into Kelvin SmartApps™:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

from kelvin.application import KelvinApp, AssetInfo
from kelvin.message.typing import AssetDataMessage

app = KelvinApp()

async def on_asset_input(msg: AssetDataMessage):
    """Called for data messages from asset inputs"""
    print(f"Data from {msg.resource}: {msg.payload}")

# Assign callbacks
app.on_asset_input = on_asset_input

app.run()

Asynchronous Consumption¶

This approach pauses program execution until new data arrives, resuming only when data is available. To enhance efficiency and reduce unnecessary executions, filters can also be applied to limit the types of data that trigger events.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22

import asyncio
from typing import AsyncGenerator # AsyncGenerator import

from kelvin.application import KelvinApp, filters # filters import
from kelvin.message import Number # Number (Input Type) import


async def main() -> None:
    app = KelvinApp()

    # Create a Filtered Stream with Temperature (Number) Input Messages
    motor_temperature_msg_stream: AsyncGenerator[Number, None] = app.stream_filter(filters.input_equals("motor_temperature"))

    await app.connect()

    # Wait & Read new Temperature Inputs
    async for motor_temperature_msg in motor_temperature_msg_stream:
        print("Received Motor Temperature: ", motor_temperature_msg)


if __name__ == "__main__":
    asyncio.run(main())

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

import asyncio
from asyncio import Queue # Queue import

from kelvin.application import KelvinApp, filters # filters import
from kelvin.message import Number # Number (Input Type) import


async def main() -> None:
    app = KelvinApp()

    # Create a Filtered Queue with Temperature (Number) Input Messages
    motor_temperature_msg_queue: Queue[Number] = app.filter(filters.input_equals("motor_temperature"))

    await app.connect()

    while True:
        # Wait & Read new Temperature Inputs
        motor_temperature_msg = await motor_temperature_msg_queue.get()

        print("Received Motor Temperature: ", motor_temperature_msg)


if __name__ == "__main__":
    asyncio.run(main())

Filters¶

When working with queues or async streams, you can apply filters to receive only the timeseries data that matches your criteria.

Built-in Filters¶

There are a number of built-in filters available.

By Data Stream Name¶

You can receive Messages that only have certain Data Stream names.

1
2

filters.input_equals("temperature")
filters.input_equals(["temperature", "pressure"])

By Asset Name¶

You can receive Messages that only have certain Asset names.

1
2

filters.asset_equals("my-asset")
filters.asset_equals(["asset-1", "asset-2"])

By KRN Resource¶

You can receive Messages that only have certain Resources by Kelvin Resource Name (KRN).

1
2

filters.resource_equals(krn_instance)
filters.resource_equals([krn1, krn2])

By Message Type¶

You can receive certain types of Messages only.

1
2
3
4
5

filters.is_data_message(msg)
filters.is_asset_data_message(msg)
filters.is_control_status_message(msg)
filters.is_custom_action(msg)
filters.is_data_quality_message(msg)

Custom Filters¶

You can also create your own custom filters.

For example, you only want to receive Messages where the value is greater than 100.

1
2
3
4
5

def custom_filter(msg: Message) -> bool:
    """Filter for high-value readings"""
    return msg.payload > 100

queue = app.filter(custom_filter)
