Asset parameter messages

App Parameter Messages

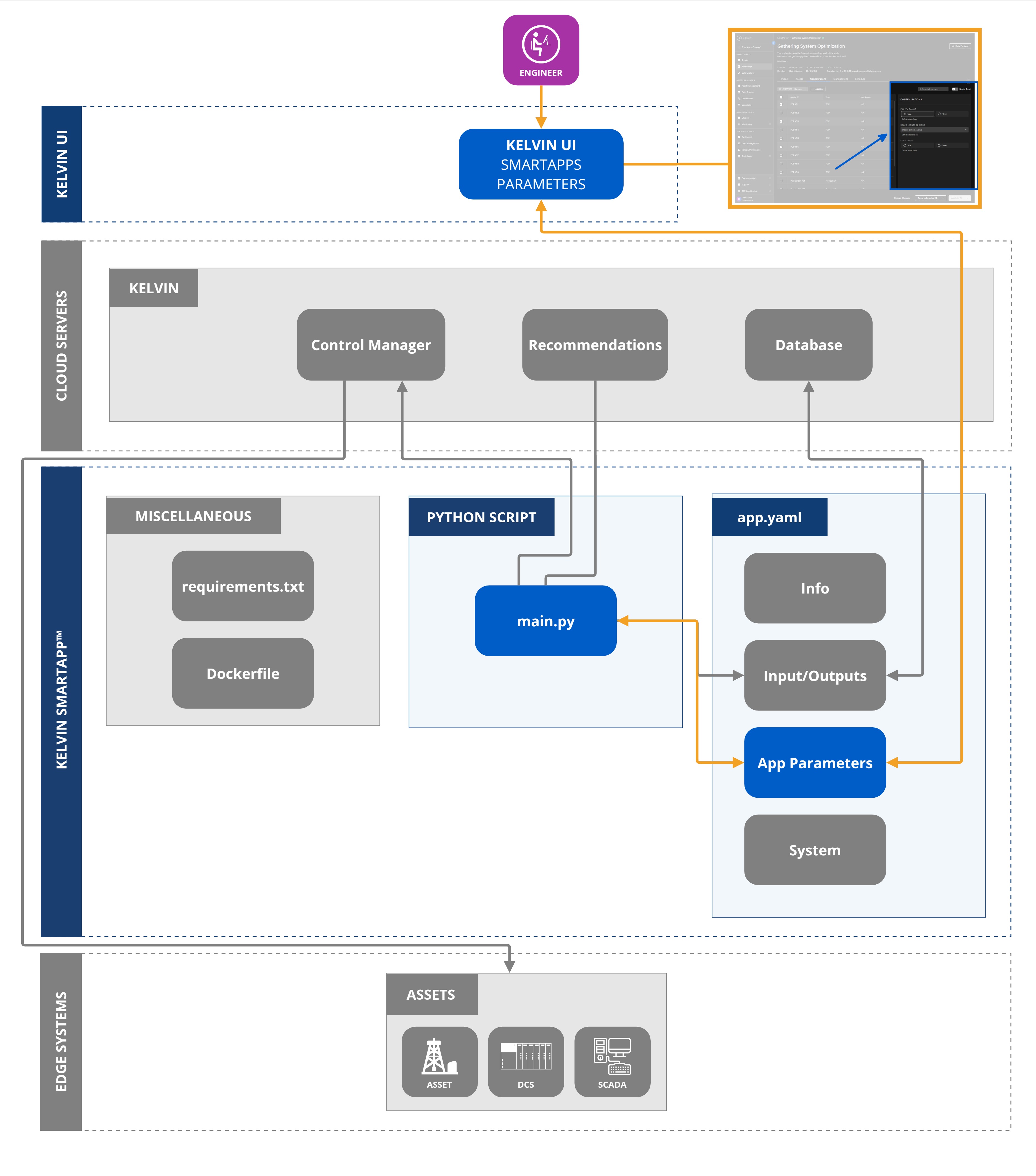

Kelvin SmartApps™ can publish an App Parameter Message in order to (asynchronously) update a given App Parameter for a given Asset.

The App Parameter update will persist as soon as this message is synced with the Kelvin Cloud.

Note

A user can also change the App Parameter value through the Kelvin UI.

Any changes done automatically by an application will be updated on the Kelvin UI screen.

You can see the configuration options for a Kelvin SmartApp™ for an Asset in SmartApp section of the Kelvin UI.

The AssetParameter Object supports the following attributes:

Attribute Required Description
resource required The KRNAssetParameter that this update is meant for.
value required App Parameter value (Boolean, Integer, Float or String).
comment optional Detailed description of the App Parameter update.

Examples

Basic Usage

This is how an App Parameter can be created and published in a Kelvin SmartApp™:

Create and Publish App Parameter Python Example
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
from datetime import timedelta, datetime

from kelvin.application import KelvinApp
from kelvin.message import AssetParameter
from kelvin.krn import KRNAssetParameter

app = KelvinApp()

@app.timer(interval=10)
async def publish_data():

    # Create and Publish App Parameter
    await app.publish(
      AssetParameters(
        parameters=[
          AssetParameter(resource=KRNAssetParameter(asset, "min_treshold"), value=0)
        ],
        resource=KRNAppVersion(target_app_name, "1.0.0")
      )
    )

app.run()

App to App Usage

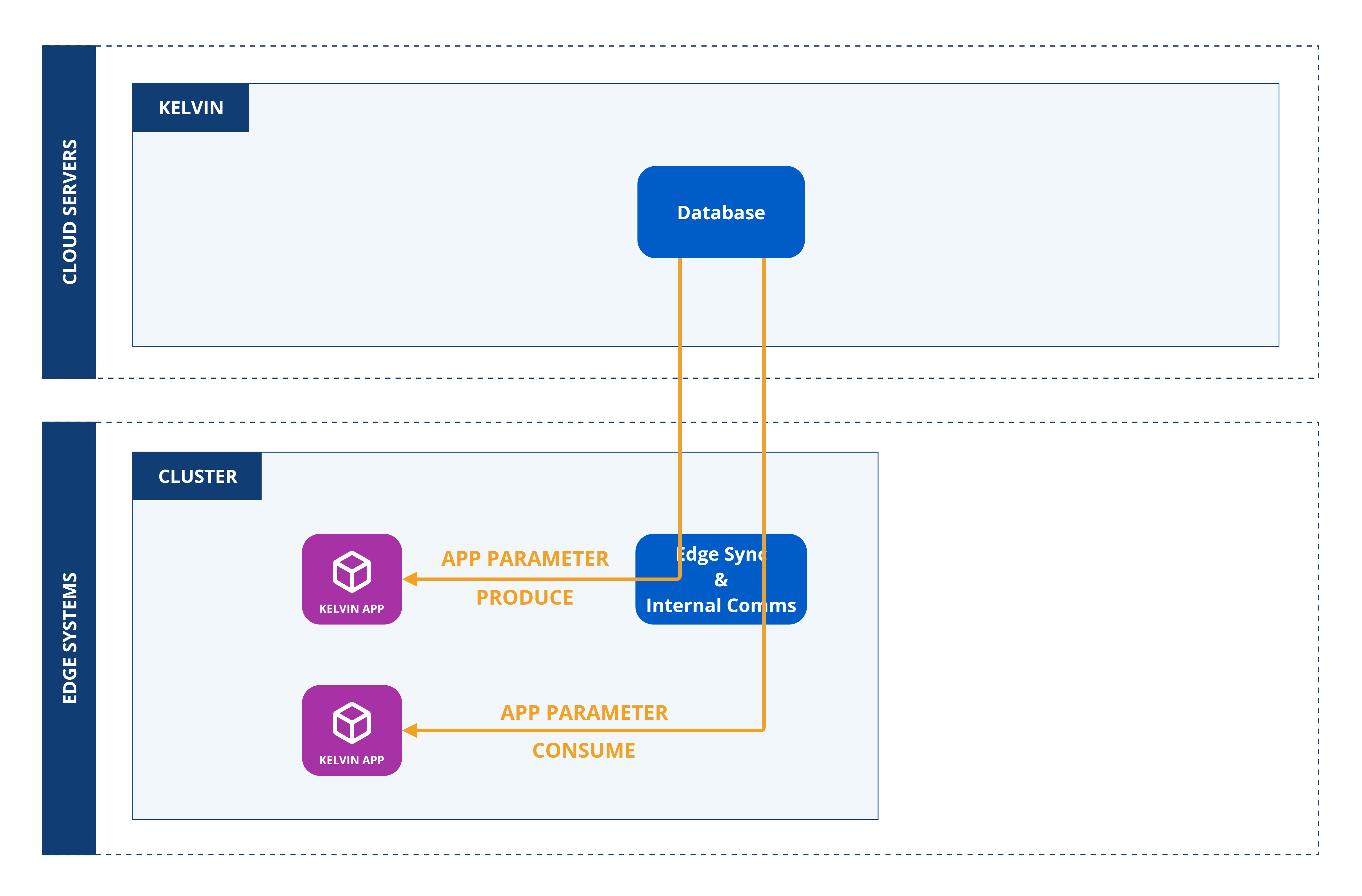

App Parameters can also be automatically updated from one Kelvin SmartApp™ to another Kelvin SmartApp™.

There needs to be an Internet connection to the Kelvin Cloud even if both Kelvin SmartApps™ are deployed to the same Cluster.

In the Kelvin SmartApp™ program, it can produce an update App Parameter value(s) to another Kelvin SmartApp™ like this;

Create and Publish Multiple App Parameters Python Example
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
from kelvin.message import AssetParameters, AssetParameter
from kelvin.krn import KRNAppVersion

app = KelvinApp()

@app.timer(interval=10)
async def publish_data():

    # Create and Publish Multiple App Parameters
    await app.publish(
      AssetParameters(
        parameters=[
          AssetParameter(resource=KRNAssetParameter(asset, "min_treshold"), value=0),
          AssetParameter(resource=KRNAssetParameter(asset, "max_treshold"), value=50)
        ],
        resource=KRNAppVersion(target_app_name, "1.0.0")
      )
    )

app.run()
